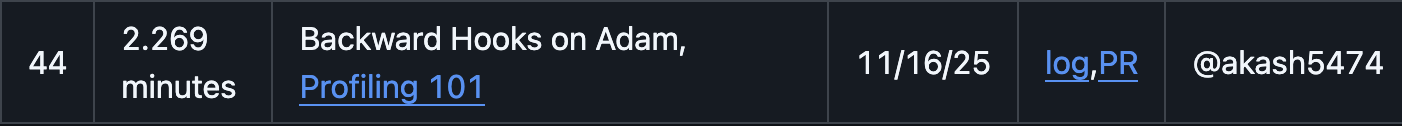

A Thousand Ways to Write ZeRO-2: Setting a New Modded-NanoGPT Record

I started learning about distributed model training strategies a few weeks ago. I wanted to implement ZeRO using asynchronous communications to see how much I could overlap communications and computations which led to me rewriting my ZeRO-2 implementation many, many times.

I had to dig through profiler traces and sift through memory snapshots to debug memory leaks until I achieved the concurrency overlap patterns that I wanted. I tried the PyTorch distributed communications futures API, the work object API, CUDA streams, CUDA events, additional process groups for concurrent communication streams, setting CUDA_LAUNCH_BLOCKING=1 for debugging, along with various combinations of the above. I might've missed some things, but most of this I was doing for the very first time. I just tried to figure it out along the way.

Not pictured are many, many more failed attempts and discarded implementations.

After I felt like I had implemented many of the different overlap patterns I could think of, I decided it might be a good idea to see how other projects implemented ZeRO-2. I first looked at Andrej Karpathy's nanochat and I noticed that the overlap could be improved.

Next I decided to see if Modded-NanoGPT does anything cool that I could learn from. To my surprise, when I saw the code I knew that I could make the same improvement on it!

The distributed Adam implementation in nanochat is actually borrowed from Modded-NanoGPT! But I didn't realize this until just now while writing this post!

Code Review

We'll start by covering the relevant parts of the DistAdam class as it was prior to making my changes. Let's focus on a roughly the first 20 lines of the step function, but the full code is included further down below.

def step(self):
    rank = dist.get_rank()
    reduce_scatter_futures: list[torch.Future] = []
    all_gather_futures: list[torch.Future] = []
    grad_slices = []
    for group in self.param_groups:
        params: list[Tensor] = group["params"]
        for param in params:
            ...
            reduce_scatter_futures.append(
                dist.reduce_scatter_tensor(
                    grad_slice, grad, op=dist.ReduceOp.AVG, async_op=True
                ).get_future()
            )
            grad_slices.append(grad_slice)

    idx = 0
    for group in self.param_groups:
        ...
        params = group['params']
        for param in params:
            reduce_scatter_futures[idx].wait()
        ...

In the code there are two loops where we iterate through the parameters. In the first loop we enqueue a reduce_scatter_tensor operation for each parameter onto the CUDA stream. Immediately following this, there is a second loop which iterates through the parameters.

The first line of code in this second loop waits on the reduce-scatter future to complete before updating the parameter weights as we normally do in the optimizer step. Concurrently the next reduce-scatter operation begins. Remember that the GPU stream behaves like a queue, so the next reduce-scatter can't begin until the first one completes! Let me show you what this looks like in a profiler trace.

Analysis

The arrows in the first image above are added to in the profiler trace to point out how the start of each "chunk" of computation in the compute stream (stream 7) aligns with the end of a reduce-scatter during the DistAdam.step in the communication stream (stream 23). Additionally there are empty gaps in between the computations representing time that our GPU is idle! In the details section we can see the overall step time is 1.528ms.

The other images show the timing of the reduce-scatter launch at the start of the DistAdam step, and that it does not overlap with the computations.

I've embedded a trace explorer so you can explore the full trace of the previous record below.

I've also plotted some metrics using the HolisticTraceAnalysis library to compare the results.

Here's the full code for the DistAdam implementation.

class DistAdam(torch.optim.Optimizer):
    def __init__(self, params, lr: float = 1e-3, betas: tuple[float, float] = (0.9, 0.999), eps: float = 1e-8, weight_decay: float = 0.01):
        self.world_size = dist.get_world_size() if dist.is_initialized() else 1
        defaults = dict(lr=lr, betas=betas, eps=eps, weight_decay=weight_decay)
        params = list(params)
        sizes = {p.shape for p in params}
        # create one buffer per unique parameter-size
        param_groups = []
        for size in sizes:
            group_params = [p for p in params if p.shape == size]
            param_groups.append(dict(params=group_params))
        super().__init__(param_groups, defaults)
        # init state
        for p in params:
            chunk_size = p.size(0) // self.world_size
            exp_avg = torch.zeros_like(p[:chunk_size], dtype=torch.bfloat16, device=p[0].device)
            exp_avg_sq = torch.zeros_like(exp_avg)
            self.state[p] = dict(step=0, exp_avg=exp_avg, exp_avg_sq=exp_avg_sq)
        # DistributedAdam implementation by @vagrawal

    @torch.compile
    @torch.no_grad()
    def step(self):
        rank = dist.get_rank()
        reduce_scatter_futures: list[torch.Future] = []
        all_gather_futures: list[torch.Future] = []
        grad_slices = []
        for group in self.param_groups:
            params: list[Tensor] = group["params"]
            for param in params:
                grad = param.grad
                rank_size = grad.shape[0] // self.world_size
                grad_slice = torch.empty_like(grad[:rank_size])
                reduce_scatter_futures.append(dist.reduce_scatter_tensor(grad_slice, grad, op=dist.ReduceOp.AVG, async_op=True).get_future())
                grad_slices.append(grad_slice)

        idx = 0
        for group in self.param_groups:
            beta1, beta2 = group['betas']
            eps = group['eps']
            wd = group['weight_decay']
            params = group['params']
            for param in params:
                reduce_scatter_futures[idx].wait()
                rank_size = param.shape[0] // self.world_size
                p_slice = param[rank * rank_size:(rank + 1) * rank_size]
                lr = group['lr'] * getattr(param, "lr_mul", 1.0)
                state = self.state[param]
                g_slice = grad_slices[idx]

                exp_avg = state["exp_avg"]
                exp_avg_sq = state["exp_avg_sq"]
                state["step"] += 1
                t = state["step"]
                # weight decay
                if wd != 0:
                    eff_weight_decay = lr * wd * getattr(param, "wd_mul", 1.0)
                    p_slice.mul_(1 - eff_weight_decay)
                # update running averages
                exp_avg.mul_(beta1).add_(g_slice, alpha=1 - beta1)
                exp_avg_sq.mul_(beta2).addcmul_(g_slice, g_slice, value=1 - beta2)
                # bias corrections
                bias1 = 1 - beta1 ** t
                bias2 = 1 - beta2 ** t
                # compute step
                denom = exp_avg_sq.sqrt().add_(eps)
                step_size = lr * (bias2 ** 0.5 / bias1)
                update = exp_avg.div(denom).mul_(step_size)
                p_slice.add_(other=update, alpha=-1.0)
                idx += 1
                all_gather_futures.append(dist.all_gather_into_tensor(param, p_slice, async_op=True).get_future())
        torch.futures.collect_all(all_gather_futures).wait()

Code Review

Backward Hooks

There are two important changes which lead to this improvement. The main change was to move the reduce_scatter_tensor call into a backward hook so that we can launch our async communication operations sooner.

First we register backward hooks in the __init__ function to call _sync_gradient, and define the _reduce_scatter_futures dict to store references to the futures so we can wait on them later.

class DistAdam(torch.optim.Optimizer):
    def __init__(self, params, ...):
        ...
        self.should_sync = False

        self._reduce_scatter_hooks = []
        self._reduce_scatter_futures = {}
        self.register_backward_hooks()

    def register_backward_hooks(self):
        for group in self.param_groups:
            params: list[Tensor] = group["params"]
            for param in params:
                hook = param.register_post_accumulate_grad_hook(self._sync_gradient)
                self._reduce_scatter_hooks.append(hook)

Next we move the core of the "first loop" from the step function in the prior implementation which launches the _reduce_scatter_tensor operation into _sync_gradient. There's a check self.should_sync because in Modded-NanoGPT the Adam optimizer is stepped on every other batch, while the Muon optimizer is stepped for every batch.

def _sync_gradient(self, param):
    if not self.should_sync:
        return

    grad = param.grad
    rank_size = grad.shape[0] // self.world_size
    grad_slice = torch.empty_like(grad[:rank_size])
    self._reduce_scatter_futures[param] = (
        dist.reduce_scatter_tensor(
            grad_slice, grad, op=dist.ReduceOp.AVG, async_op=True
        ).get_future(),
        grad_slice
    )

Since backward hooks should execute for parameters as their gradients are computed, they are roughly executed in reverse order. The step function is changed so that it iterates through the parameters and parameter groups in reverse order.

Reverse Parameter Order

In the init function, the parameter groups are redefined so that parameters are grouped by the their tensor shape. During this regrouping we iterate through the parameters in forward order which means the first parameter's shape will be first in the dict (since python dict keys maintain insertion order), and later parameter shapes will appear later as we iterate through the dict.

class DistAdam(torch.optim.Optimizer):
    def __init__(self, params, ...):
        ...
        sizes = {p.shape for p in params}
        # create one buffer per unique parameter-size
        param_groups = []
        for size in sizes:
            group_params = [p for p in params if p.shape == size]
            param_groups.append(dict(params=group_params))
        ...

This regrouping is critical to the training performance. Skipping it made training faster but caused the final loss to exceed the 3.28 threshold required for Modded-NanoGPT.

So even though we've rearranged the groups, as long as we iterate in reverse order we'll wait on the reduce-scatter futures in roughly the same order as the backward pass and maintain performance.

def step(self):
    rank = dist.get_rank()
    all_gather_futures: list[torch.Future] = []

    for group in reversed(self.param_groups):
        beta1, beta2 = group['betas']
        eps = group['eps']
        wd = group['weight_decay']
        for param in reversed(group['params']):
            if param not in self._reduce_scatter_futures:
                continue

            fut, g_slice = self._reduce_scatter_futures[param]
            fut.wait()

Results

In the first image you can see in the trace that the reduce-scatter now overlaps the computation and begins earlier. Although there are still some gaps in the compute stream, there are a smaller number of them and the "chunks" of computation are more contiguous.

If we look at the details section, we'll see that the step time is now down to 1.122ms which is roughly a 30% reduction!

The other images show the timing of the reduce-scatter launch at the start of the DistAdam step is now at the end of the backward pass, and now it does overlap with the computations.

I've embedded a trace explorer so you can check it out for yourself.

class DistAdam(torch.optim.Optimizer):
    def __init__(self, params, lr: float = 1e-3, betas: tuple[float, float] = (0.9, 0.999), eps: float = 1e-8, weight_decay: float = 0.01):
        self.world_size = dist.get_world_size() if dist.is_initialized() else 1
        defaults = dict(lr=lr, betas=betas, eps=eps, weight_decay=weight_decay)
        params = list(params)
        sizes = {p.shape for p in params}
        # create one buffer per unique parameter-size
        param_groups = []
        for size in sizes:
            group_params = [p for p in params if p.shape == size]
            param_groups.append(dict(params=group_params))
        super().__init__(param_groups, defaults)
        # init state
        for p in params:
            chunk_size = p.size(0) // self.world_size
            exp_avg = torch.zeros_like(p[:chunk_size], dtype=torch.bfloat16, device=p[0].device)
            exp_avg_sq = torch.zeros_like(exp_avg)
            self.state[p] = dict(step=0, exp_avg=exp_avg, exp_avg_sq=exp_avg_sq)
        # DistributedAdam implementation by @vagrawal, @akash5474

        self.should_sync = False

        self._reduce_scatter_hooks = []
        self._reduce_scatter_futures = {}
        self.register_backward_hooks()

    def register_backward_hooks(self):
        for group in self.param_groups:
            params: list[Tensor] = group["params"]
            for param in params:
                hook = param.register_post_accumulate_grad_hook(self._sync_gradient)
                self._reduce_scatter_hooks.append(hook)

    @torch.compile
    @torch.no_grad()
    def _sync_gradient(self, param):
        if not self.should_sync:
            return

        grad = param.grad
        rank_size = grad.shape[0] // self.world_size
        grad_slice = torch.empty_like(grad[:rank_size])
        self._reduce_scatter_futures[param] = (
            dist.reduce_scatter_tensor(grad_slice, grad, op=dist.ReduceOp.AVG, async_op=True).get_future(),
            grad_slice
        )

    @torch.compile
    @torch.no_grad()
    def step(self):
        rank = dist.get_rank()
        all_gather_futures: list[torch.Future] = []

        for group in reversed(self.param_groups):
            beta1, beta2 = group['betas']
            eps = group['eps']
            wd = group['weight_decay']
            for param in reversed(group['params']):
                if param not in self._reduce_scatter_futures:
                    continue

                fut, g_slice = self._reduce_scatter_futures[param]
                fut.wait()

                rank_size = param.shape[0] // self.world_size
                p_slice = param[rank * rank_size:(rank + 1) * rank_size]
                lr = group['lr'] * getattr(param, "lr_mul", 1.0)
                state = self.state[param]

                exp_avg = state["exp_avg"]
                exp_avg_sq = state["exp_avg_sq"]
                state["step"] += 1
                t = state["step"]
                # weight decay
                if wd != 0:
                    eff_weight_decay = lr * wd * getattr(param, "wd_mul", 1.0)
                    p_slice.mul_(1 - eff_weight_decay)
                # update running averages
                exp_avg.mul_(beta1).add_(g_slice, alpha=1 - beta1)
                exp_avg_sq.mul_(beta2).addcmul_(g_slice, g_slice, value=1 - beta2)
                # bias corrections
                bias1 = 1 - beta1 ** t
                bias2 = 1 - beta2 ** t
                # compute step
                denom = exp_avg_sq.sqrt().add_(eps)
                step_size = lr * (bias2 ** 0.5 / bias1)
                update = exp_avg.div(denom).mul_(step_size)
                p_slice.add_(other=update, alpha=-1.0)

                all_gather_futures.append(dist.all_gather_into_tensor(param, p_slice, async_op=True).get_future())

        self._reduce_scatter_futures.clear()
        torch.futures.collect_all(all_gather_futures).wait()
